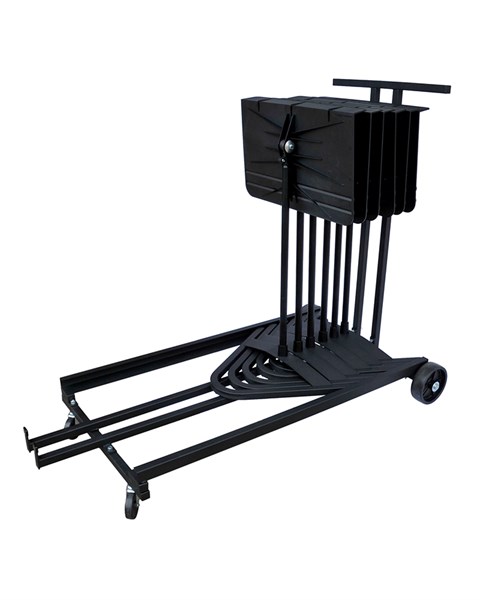

Model 1980 Stand Cart

Manhasset Harmony Stand Storage CartThe Harmony Stand Cart, with its horizontal rail framework, is designed to hold 15 of the horizontally stacking Harmony music stands. In addition to their ability to be stored using very little space, now with this Harmony Stand Cart, we can now offer ease of portability for this stand. Since this cart has an overall length of less than 5 feet, it can easily fit in most elevators. It is made to the same strict standards and of the same high quality as Manhasset’s other storage carts. With its welded steel construction and durable powder coated finish, it will provide service for years to come.  Not intended for outdoor use.

Inspect the carton for any external damage. Report ANY visible damage to the shipping carrier right away.

---

Before you Begin, You Will Need:

• Assembly instructions
• Parts list
• Proper tools

Caution!

Do not tighten securely until all nuts and bolts are in place.

1. Attach the inner rails to the vertical sections of the handle axle.
2. Use the eight millimeter bolts, small flat washers, lock washers, and eight millimeter hex nuts. Note: Do not tighten these securely until all nuts and bolts for the frame are in place.
3. Important Placement: Ensure the connecting tabs located toward the front end of the inner rails are situated on the outside, as shown in the parts diagram.
4. Attach the outer rails to the handle axle using the eight millimeter bolts, washers, lock washers, and eight millimeter hex nuts. Note: Make sure the ends of the outer rails that contain the stops inside the channels are the ones attached to the handle axle.
5. Attach the front connecting tabs of the inner rails to the front axle.
6. Secure them using the eight millimeter hardware through the two inner holes of the front axle.
7. Using the 12 millimeter axle bolts, attach the six-inch wheels to the handle axle.
8. Place a large flat washer on each side of both wheels.
9. Warning: Do not over-tighten; the wheels must be able to spin freely.
10. Attach the outer rails to the front axle using the two threaded caster wheels through the two outer holes of the axle.
11. Connect the threaded posts using star washers on the underside of the front axle, and small flat washers and eight millimeter hex nuts on the upper side.
12. Tighten all eight millimeter nuts and bolts securely across the entire cart.
13. Ensure that the rails and axles are squared and parallel.
14. When loading a music stand onto the cart, be sure to flip the desk all the way over backwards into the storage position.
